How to Connect a Humidifier to Your Furnace
Learn how to safely connect a humidifier to your furnace, verify compatibility, install the unit, and maintain optimal humidity throughout your home with practical, maintenance-focused guidance from HumidifierBasics.
In this guide you’ll learn how to connect a furnace humidifier to your home’s heating system, including compatibility checks, choosing between bypass and fan-powered models, and a safe installation workflow. You’ll also find tips for wiring, water connections, and initial humidity tuning. Follow these steps to achieve even, comfortable humidity via your furnace.
Why a humidifier connection to furnace matters
According to HumidifierBasics, integrating a humidifier with your furnace can distribute moisture evenly through heated air, improving comfort, reducing static, and helping protect wooden furniture and musical instruments. A properly installed furnace humidifier also helps maintain indoor humidity in a range that is generally comfortable for most homes, often around 30-50% relative humidity depending on climate and season. The HumidifierBasics team found that central humidification tends to be more consistent than room units, because moisture is delivered through the heating system rather than into individual rooms. When evaluating the "humidifier connection to furnace", homeowners should consider system compatibility, ductwork layout, and water supply options before purchasing.
Types of furnace humidifier connections
Furnace humidifiers come mainly in two connection styles: bypass and fan-powered. A bypass humidifier uses the furnace’s blower to push warm air through a water panel, creating humidity that re-enters the ductwork. It is typically less expensive and simpler to install, making it a popular choice for many homes. A fan-powered humidifier includes its own power source and uses the furnace’s air not only to move air through the water panel but also to push damp air deeper into the duct network, often delivering higher humidity with greater control. When selecting a model, examine the duct size, placement around the furnace, and the electrical requirements. The choice between bypass and fan-powered should balance humidity goals, energy use, and installation ease.
Other considerations include whether you need a whole-house unit or a more compact alternative, compatibility with your furnace type (gas, oil, or electric), and the ease of maintenance, such as mineral deposit management and filter replacement. Humidifier connections are typically installed near the return air plenum or in-line with the supply duct, depending on the design. The goal is reliable moisture distribution without over-humidifying or causing condensate issues on walls and windows.
Installation prerequisites and safety considerations
Before installing a furnace humidifier, ensure you have the right kit for your system and that you understand local building codes. Turn off power at the furnace and lock out the electrical supply to avoid accidental shocks during work. If you have a gas furnace, shut off the gas supply following the manufacturer’s instructions and verify there is no gas odor. Read the humidifier manual to confirm water line requirements, drain setup, and electrical minimums. Consider whether you need a dedicated shutoff valve for the water line and a condensate drain line that won’t backflow into your home. If you’re unsure about any step, consult a licensed HVAC technician. Properly installed connections protect your warranty and help prevent leaks that can cause water damage.

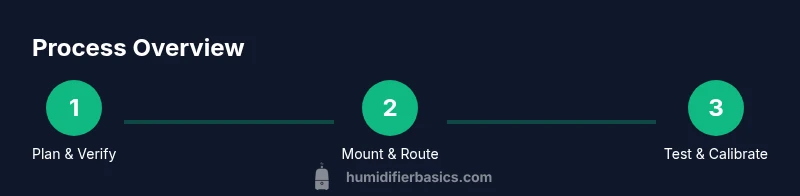

Step-by-step overview (high-level) of the installation process
A well-planned installation reduces surprises later. Start by confirming compatibility with your furnace model, then position the humidifier on the ductwork at an accessible height. Install the water line with a shutoff valve and a clean, stable drain connection. Route the electrical wiring safely, using a dedicated circuit and proper strain relief. Finally, test the system, calibrate humidity controls, and monitor for leaks during the initial run. This overview sets up the detailed steps that follow in the dedicated STEP-BY-STEP section.
Tools & Materials
- furnace humidifier kit (furnace-humidifier compatible)(Choose bypass or fan-powered kit based on your furnace and desired humidity level)
- screwdrivers (Phillips #2 and flathead)(Essential for mounting and panel removal)
- adjustable wrench(Used for fittings and water line connections)
- water supply line kit with shutoff valve(Ensure compatibility with your existing piping and water pressure)
- drain line and air vent components(Prevent backflow and condensation issues)
- non-contact voltage tester(Safety check before touching electrical components)
- duct tape and sealant(Seal joints to prevent leaks)
- tubing clamps and insulation(Secure lines and reduce heat loss)
Steps
Estimated time: 60-120 minutes
- 1
Prepare and safety check
Power down the furnace and, if applicable, shut off the gas supply. Confirm there are no furnace‑related warnings on the unit and inspect the duct where the humidifier will mount. This step prevents electrical shock and gas hazards while you work.
Tip: Double-check the service panel is clearly labeled and use lockout-tagout if available. - 2
Select mounting location and kit type
Choose a location on the return or supply duct that is accessible for maintenance and water line routing. Verify your humidifier model matches your furnace’s duct size and the water line needs. Mark mounting holes before drilling.
Tip: Keep clearance for the water line and for future filter changes. - 3
Mount the humidifier and connect ductwork
Attach the humidifier to the duct using the provided hardware. Ensure it is level and sealed around all joints to prevent leaks. If using a bypass kit, connect the bypass duct to the furnace and the humidifier.
Tip: Use silicone sealant on any exterior joints if specified by the kit. - 4
Install water supply line and drain
Connect the water line to the humidifier’s inlet using the included fittings. Install a shutoff valve before the connection and route a drain line to an appropriate drain. Check for kinks and ensure the line slopes slightly toward the drain.
Tip: Flush the line to clear debris before final connection. - 5
Wire the humidifier and set controls
Run the electrical wiring according to the manufacturer’s diagram. If your unit requires a separate control, connect it to the furnace thermostat or dedicated humidistat. Ensure power is restored only after all connections are secure.
Tip: Use a dedicated circuit and secure wires with proper strain relief. - 6
Test, calibrate, and inspect
Turn the system back on and test for leaks. Calibrate the humidity setting to avoid over-humidification, then run for 20–30 minutes to verify operation. Check the condensate drain and ensure air flow remains uninterrupted.
Tip: Take photos of each connection before powering up to assist future service.
FAQ
Do I need a professional to install a furnace humidifier?
While many bypass and some fan-powered units can be installed by a confident DIYer, installation involves electrical wiring, water connections, and ductwork. If you’re unsure about any step, hire a licensed HVAC technician to ensure safety and warranty compliance.
A professional can ensure safety and keep your warranty intact, especially if wiring or gas lines are involved.
What types of furnace humidifier connections are available?
The two main types are bypass and fan-powered humidifiers. Bypass units rely on the furnace blower for air flow, while fan-powered units have their own fan and can deliver higher humidity. Your choice depends on desired humidity, budget, and duct layout.
There are bypass and fan-powered options; the right pick depends on the space and humidity goals.
Can I use tap water in a furnace humidifier?
Tap water is commonly used, but minerals in hard water can cause deposits that reduce efficiency. If you have very hard water, consider using softened water or a descaling routine as part of maintenance.
Hard water can cause mineral buildup, so consider softened water or regular descaling.
How do I prevent mineral buildup in a furnace humidifier?
Install a water treatment option if recommended by the manufacturer, replace filters as needed, and flush the system during routine maintenance. Mineral deposits can impede airflow and shorten component life.
Regular flushing and using treated water helps prevent deposits that can clog the unit.
Will installing a furnace humidifier affect my warranty?
Installing a humidifier can affect warranty if installed improperly or by an uncertified technician. Always follow manufacturer instructions and consider professional installation if unsure.
Follow the manual and, if in doubt, hire a pro to protect your warranty.
How often should I check humidity levels after installation?
Check humidity levels weekly during the first month, then monthly maintenance thereafter. Aim for a balanced range that avoids condensation on windows and mold growth.
Check humidity weekly at first, then monthly, to keep comfort consistent.
Watch Video
The Essentials
- Verify compatibility before purchase.
- Choose the right kit for your furnace type.
- Seal joints to prevent leaks during operation.
- Calibrate humidity to avoid over-humidification.
- Document connections for future service.
