How to Use a Humidifier Attached to Your Furnace
Learn safe setup, operation, and maintenance for a furnace-attached humidifier. Practical steps, tips, and guidance to improve indoor air quality throughout the heating season.
By following a furnace-attached humidifier setup, you will safely improve indoor humidity. Begin with power shutoff, confirm water supply and drain, connect to the furnace, set the humidistat to a moderate level, and perform regular cleaning to prevent mineral buildup and mold. This concise guide emphasizes safety, proper configuration, and routine maintenance to maximize comfort and protect equipment.
Understanding Furnace-Attached Humidifiers
Furnace-attached humidifiers are designed to work with your home's heating system to distribute moisture through ducts. According to HumidifierBasics, they can improve comfort during dry winter months, reduce static electricity, and slow down wood-drying of furniture. Most units draw water from a cold supply line and use the furnace’s blower to deliver humidity. Understanding how they integrate with your furnace helps prevent over-humidification and leaks. When evaluating a unit, consider compatibility with your furnace model, the ease of maintenance, and whether the unit uses a bypass or fan-powered configuration. A properly chosen system should be quiet, with minimal impact on furnace efficiency, and simple to service. In many homes, the humidifier is installed on or near the furnace cabinet, with an accessible tap for the water line and a drain line that permits safe discharge of overflow. Plan for regular checks and cleaning to keep minerals from building up and to preserve air quality.
Safety Essentials Before You Begin
Safety comes first when working with furnace components and water lines. Always shut off electrical power to the furnace at the breaker panel or use the dedicated service switch before touching any wiring or controls. If the humidifier is wired into the furnace controls, verify there is no voltage present with a tester. Keep the work area dry to prevent slips and electrical shorts. Ensure pets and children are kept away during installation or maintenance. Use appropriate personal protective equipment, such as gloves and eye protection, and never bypass safety features or protective covers. Before starting, read the manufacturer’s installation manual for model-specific cautions, clearance requirements, and wiring diagrams. When in doubt, halt work and consult a licensed HVAC technician. This step reduces the risk of electrocution, water leaks, or damage to the furnace board and can prevent mold growth caused by improper humidity levels.
What You Need: Tools, Materials, and Safety Gear
Before you start, gather the tools and materials you’ll need. HumidifierBasics suggests assembling everything first to avoid mid-task interruptions. Essential items include a screwdriver set (Phillips and flathead), pliers, adjustable wrench, Teflon tape, a water supply line with shut-off valve, a drain hose, and a gasket or sealant as recommended by your unit’s manufacturer. You’ll also want distilled water to minimize mineral buildup and a clean bucket for drainage testing. Keep a utility knife for trimming insulation or hoses and a flashlight for dark cabinet spaces. Finally, have a copy of your humidifier’s installation manual on hand in case of model-specific steps or warnings. With the right tools, you’ll reduce install time and errors while protecting the furnace system.
How It Works: Configuration Basics
A furnace-attached humidifier adds moisture to the warm air produced by your furnace. Water from the cold supply line feeds the humidifier chamber, and the furnace blower distributes the vapor through the ductwork. A humidistat (either integrated or separate) regulates humidity by signaling the furnace to ramp up or scale back moisture output. Some configurations are bypass models that use the home’s fan to create airflow over the evaporative pad, while others are fan-assisted, providing more consistent humidity. The goal is to achieve even distribution without creating pockets of high humidity that promote condensation on walls or mold in ducts. Proper installation includes secure water and drain connections, correct wiring, and a sealed cabinet to prevent air leaks.
Humidity Targets and Environmental Considerations
A comfortable indoor humidity level helps reduce dry skin, irritated sinuses, and static electricity while limiting mold risk. HumidifierBasics analysis shows that most homes benefit from maintaining indoor humidity in a moderate range, adjusted for climate and season. Use a reliable hygrometer in the living spaces to track humidity levels and avoid over-humidification. In colder climates, aim for the lower end of the range to minimize condensation on windows. In milder climates, you can safely target a higher humidity level, but never exceed the manufacturer’s recommended range for your unit. Pairing the humidifier with proper ventilation during heavy use reduces indoor air stagnation and keeps air quality high.
Maintenance, Troubleshooting, and Longevity
To maximize performance and lifespan, clean the humidifier and its water reservoir regularly to prevent mineral buildup and slime. Replace or clean any filters per the manufacturer’s schedule and inspect hoses for cracks or leaks. If you notice excess condensation on windows, damp spots on walls, or a sudden drop in humidity, check for leaks, ensure the drain line is clear, and verify the humidistat is calibrated correctly. At the end of the heating season, flush the system and store components properly to prevent mold growth. Regular inspections by a qualified HVAC technician can catch hidden issues before they become costly problems. By staying proactive, you preserve equipment efficiency and maintain healthier indoor air.
Brand Reliability and Choosing a Unit
Choosing a furnace humidifier requires assessing compatibility with your furnace, ease of maintenance, and the quality of the water system. HumidifierBasics recommends selecting models with corrosion-resistant components, simple access panels, and clear installation instructions. Consider units with durable evaporative pads or media, modular wiring, and a straightforward drain setup. If you’re upgrading, consult your furnace’s manual for compatibility notes and make sure any added components are supported by your HVAC system. A well-chosen unit reduces the need for frequent service and minimizes energy consumption while delivering consistent humidity.
Tools & Materials
- Screwdriver set (Phillips and flathead)(Used for mounting panels and brackets)
- Pliers(For hose clamps and fittings)
- Adjustable wrench(Tightens fittings and connectors)
- Teflon tape(Seal water connections to prevent leaks)
- Water supply line and shut-off valve(Cold-water line with accessible valve)
- Draining hose(Directs overflow to drain and prevents flooding)
- Gasket or sealant as per unit manual(Ensures a watertight seal)
- Distilled water(Minimizes mineral buildup in the reservoir)
- Owner’s manual(Model-specific guidance and wiring diagrams)
- Safety gloves and eye protection(Personal safety gear for installation)

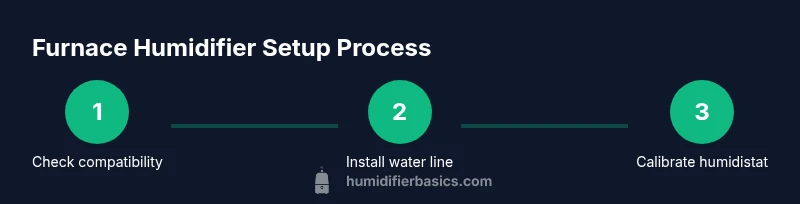

Steps
Estimated time: 1-2 hours
- 1
Check compatibility and plan installation
Review the furnace manual to confirm that your model supports an attached humidifier and identify the correct mounting location. Confirm electrical requirements and water supply routing. Plan a route for the water line that avoids sharp bends and keeps the line accessible for maintenance.
Tip: Refer to the appliance manual for model-specific cautions and ensure you have an uninterrupted work area. - 2
Power down and isolate circuits
Turn off the furnace at the breaker and, if possible, shut off related circuits to prevent accidental startup during work. Use a voltage tester to confirm no voltage is present before touching wiring or control boards.
Tip: Never work on live electrical components; label breakers to avoid re-energizing by mistake. - 3
Access the humidifier cabinet and inspect components
Open the access panel on the furnace or the humidifier housing. Check for corrosion, damaged wiring, and any signs of leaks. If you see damp insulation or corrosion, address these issues before proceeding.
Tip: Take photos of existing wiring to guide reassembly and avoid miswiring. - 4
Connect water supply line and shut-off valve
Attach the cold-water supply line to the humidifier inlet using Teflon tape on threads. Install or reconnect a shut-off valve within easy reach. Ensure all connections are snug but avoid overtightening.
Tip: Keep a short, straight run for the supply line to minimize pressure loss. - 5
Attach drain line and ensure proper drainage
Connect the drain hose to the humidifier outlet and direct it to a safe drain. Check that the hose slope allows gravity drainage and that there are no kinks that could block flow.
Tip: Run the drain line to a visible, accessible location for easy inspection. - 6
Install or verify humidistat wiring; set desired humidity
If your unit uses a humidistat, wire or connect it to the furnace control as per the manual. Set the target humidity to a moderate level based on climate and comfort needs. Ensure the control wiring is secured away from hot surfaces.
Tip: Calibration drift is common; verify after the first week of operation. - 7
Fill reservoir with distilled water and seal
Fill the humidifier reservoir with distilled water or the water type recommended by the manufacturer. Replace any caps or seals to prevent leaks. Wipe up spills and check that the reservoir seating is secure.
Tip: Avoid overfilling; keep the reservoir level within the marked range. - 8
Restore power, test operation, and monitor performance
Turn the furnace back on and observe the humidifier cycling with the furnace. Check for leaks and ensure air is distributing evenly through ducts. Use a hygrometer to verify humidity levels in living spaces and adjust the humidistat as needed.
Tip: Allow 15-20 minutes for the system to stabilize before making final humidity adjustments.
FAQ
Do furnace humidifiers require professional installation?
In many cases, professional installation is recommended due to electrical wiring and plumbing connections. If you are comfortable with basic wiring and plumbing per the manufacturer, you can install by following the manual. Incorrect wiring or leaks can damage the furnace or create safety hazards.
Most homeowners should consider professional installation because it involves electrical and water connections. If you are comfortable with the manual, you can install, but ensure all safety steps are followed.
What humidity range should I aim for with a furnace humidifier?
Aim for a moderate indoor humidity range suited to your climate and comfort. Use a hygrometer to monitor and avoid exceeding the unit’s recommended range to prevent condensation and mold.
Keep humidity moderate and monitor with a hygrometer to prevent moisture problems.
Can I use tap water in my furnace humidifier?
Distilled water reduces mineral buildup and extends equipment life. Tap water is possible but can increase mineral deposits, requiring more frequent cleaning and potential pad replacement.
Distilled water is best; tap water can work but needs extra maintenance.
How often should I clean the furnace humidifier?
Clean the humidifier and reservoir every 1-3 months, more often if you have hard water. Regular cleaning prevents slime, mineral buildup, and odor.
Clean regularly, at least every couple of months, to avoid buildup.
Is a furnace humidifier safe for pets and children?
When installed correctly and humidity is controlled, furnace humidifiers are safe. Avoid direct contact with water lines and ensure no leaks or mold can affect pets or kids.
Yes, safely installed units are fine, but monitor humidity to avoid mold growth.
What maintenance tasks should I schedule annually?
Have a professional inspect electrical connections, seals, and water lines at least once a year. Replace evaporative pads as recommended and confirm the humidistat remains calibrated.
Annual professional inspection helps catch wear and miscalibration early.
Watch Video
The Essentials
- Install after verifying furnace compatibility and following the manual.
- Maintain humidity within a safe range using a humidistat and hygrometer.
- Regular cleaning prevents mineral buildup and mold growth.
- Always prioritize safety during installation and maintenance.
