HVAC Humidifier Installation: A Step-by-Step Home Guide
Comprehensive guide to installing an HVAC humidifier on a furnace or air handler, covering types, sizing, safety, water supply, wiring, testing, and maintenance for improved indoor air quality.
According to HumidifierBasics, this step-by-step guide helps homeowners install an HVAC humidifier safely on a furnace or air handler. You’ll assess compatibility, select the right humidifier type, prepare the site, and complete testing after installation. Gather tools, review water and drainage needs, and follow safety precautions to improve indoor air quality and comfort.
Understanding HVAC Humidifier Installation
An HVAC humidifier installation integrates a moisture-producing component with your home's furnace or air handler to add humidity to the supply air. This project touches several systems at once: the heating or cooling equipment, the air distribution ductwork, the electrical controls, and the water supply. A successful install must respect safety guidelines, manufacturer's instructions, and local codes. Common goals include reducing dry indoor air, protecting wood furniture and flooring, and helping occupants feel more comfortable in winter months. The HumidifierBasics team notes that many homes benefit from a well-planned approach that accounts for current airflow and existing duct design. By understanding how a humidifier interacts with your system, you can select the right type and place the unit for dependable performance without compromising safety or energy use.
Choosing the Right Humidifier for Your System
When you install an HVAC humidifier, you choose among several types that integrate differently with ductwork and the furnace. A bypass humidifier uses the furnace’s airflow to carry moisture through the home, while a power or fan-assisted unit adds extra humidity with a built-in fan. Steam humidifiers generate moisture through an electric element, often providing precise control but requiring a dedicated water supply and careful wiring. Each type has pros and cons related to installation effort, maintenance needs, and compatibility with existing equipment. Your decision should reflect your home's size, climate, and the rigidity of your ductwork, as well as your comfort with a small plumbing and electrical project. The HumidifierBasics guidance emphasizes matching the humidifier type to your furnace, ensuring you can access service panels and that the unit fits cleanly within the available space. A correctly chosen humidifier reduces the risk of leaks and ensures even moisture distribution.
Sizing and Climate Considerations
Sizing an HVAC humidifier involves matching the unit to your home’s airflow needs and the capabilities of your furnace or air handler. Proper selection helps prevent under-humidification during dry seasons and over-humidification that can cause condensation and mold growth. The HumidifierBasics analysis shows that many homes benefit from consulting the furnace manual and duct layout, then choosing a unit that can operate with the expected air volume. Consider climate patterns, occupancy, and existing humidity levels to guide your choice, and remember that accurate installation matters as much as the model you pick. A thoughtful approach reduces wear on the heating system and improves comfort without wasting energy.
Pre-Installation Safety and Codes
Before you begin, prioritize safety and compliance. Shut off furnace or air handler power at the disconnect or breaker, and close the water supply valve to prevent leaks during work. Clear the work area, protect floors, and wear safety gear. Check local codes or HOA rules regarding modifying furnace connections or adding humidification equipment, and obtain any required permits if needed. If you’re unsure about code requirements, consult a qualified professional or the local building department. Following proper safety steps minimizes the risk of electrical shock, water leaks, or accidental calls to emergency services during installation.
Water Supply and Drainage Considerations
A humidifier requires a reliable water source and an appropriate drainage path. Connect the unit to a cold-water line with a shut-off valve and use approved fittings and tubing to prevent leaks. Plan a drainage route that avoids backflow and ensures proper slope toward a drain. Water quality matters because mineral deposits can accumulate in the humidifier and on downstream ductwork, potentially affecting performance and air quality. If your water is hard, consider filtration options or a mineral-control approach recommended by the manufacturer. Always test for leaks after connection and ensure the drain line is secure and not prone to kinking or blockage.
Electrical and Control Integration
Humidifier installation often involves integrating low-voltage controls with the furnace’s control board or wiring a standalone humidistat. Follow the manufacturer’s wiring diagram precisely, using proper terminals and shielded low-voltage wire where required. Keep low-voltage wiring away from hot duct areas and sharp edges, and seal any penetrations to preserve combustion safety and energy efficiency. If you’re adding a humidistat, position it where it can accurately sense room humidity without being affected by direct heat or air drafts. After wiring, re-check all connections for tightness and insulation.
Ductwork and Airflow Considerations
Place the humidifier where it can evenly distribute moisture without creating condensation on ducts. Bypass humidifiers typically mount on the return air side, while power humidifiers are connected to the supply side or near the furnace. Ensure there’s adequate clearance for service access and that duct joints remain sealed to prevent leaks. If your system uses a shared condensation drain, route it per the manufacturer’s guidance and maintain a clean, dry area around the unit. Correct placement helps achieve uniform humidity and reduces the chance of moisture-related damage to insulation and woodwork.
Common Mistakes and How to Avoid Them
Common installation mistakes include skipping power shutoff, using incompatible fittings, improper water connections, and neglecting drainage requirements. Forgetting to calibrate the humidistat or failing to verify duct integrity after mounting can lead to inconsistent humidity and leaks. Taking time to plan routing, check compatibility with the furnace, and test the system before closing up the installation reduces callbacks and warranty issues. Rely on manufacturer instructions and, when in doubt, consult a professional.
Maintenance and Long-Term Care
Regular maintenance keeps an HVAC humidifier performing well and minimizes mineral buildup. Clean the unit and any water panels or media according to the manufacturer’s schedule, inspect hoses and seals for wear, and replace filters as recommended. Monitor the drainage path for clogs and sanitize the water path periodically to prevent microbial growth. Keep an eye on indoor humidity and adjust settings to maintain comfortable levels while protecting furnishings and reducing condensation on windows. Proper maintenance also extends the life of the furnace and duct components.
DIY vs Professional Installation: When to Hire Help
DIY installation is feasible for confident homeowners who are comfortable with basic plumbing and electrical work and who can follow a manufacturer’s wiring diagram. If you lack experience with furnace wiring, water line work, or compliance with local codes, hiring a licensed HVAC technician is the safer option. Consider factors such as the complexity of the existing ductwork, accessibility of the mounting location, and compatibility with your furnace model when deciding. A professional installation can ensure proper sizing, secure connections, and proper adherence to safety standards.
Authority sources
- EPA Indoor Air Quality: https://www.epa.gov/indoor-air-quality
- National Academies Press: https://nap.edu
- ASHRAE: https://www.ashrae.org
Tools & Materials
- Humidifier kit compatible with your furnace/air handler(Ensure model matches your system type (furnace, air handler, or fan coil).)
- Water supply valve and 1/4-inch compression fittings(Cold-water line connection with shut-off valve.)
- Flexible water supply line(For connecting from valve to humidifier.)
- Drain line and condensate trap(Route to a proper drain with a trap to prevent backflow.)
- Duct mounting hardware (screws, brackets)(Securely mount the humidifier to the furnace or ductwork.)
- Low-voltage humidistat or thermostat integration kit(Wiring to furnace control as per diagram.)
- Electrical tools: screwdriver set and voltage tester(Necessary for safe wiring and testing.)
- Pliers and adjustable wrench(For fittings and clamps.)
- Teflon tape and thread sealant(Ensure leak-free water connections.)
- Safety gear (gloves, safety goggles)(Protect eyes and hands during installation.)
- Rags or towels for spills(Have on hand for cleanup.)

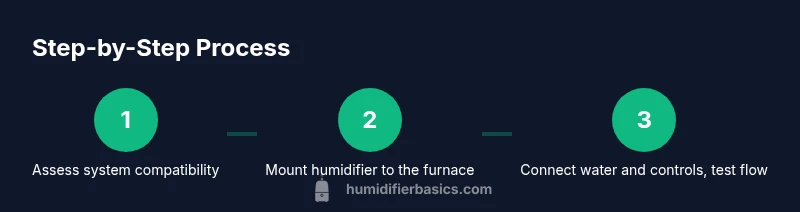

Steps
Estimated time: Estimated total time: 2-4 hours
- 1
Verify system compatibility
Review your furnace or air handler model to confirm it supports humidifier integration and determine whether you need a bypass, power, or steam type. Check available mounting space and access to service panels.
Tip: Consult the manufacturer’s diagram and verify that duct openings align with the humidifier’s inlet and outlet connections. - 2
Shut off power and water
Turn off power at the furnace disconnect or breaker. Close the cold-water shut-off valve to prevent leaks while you work. Have a towel ready for any incidental spills.
Tip: Use a voltage tester to confirm there is no live current before touching wiring. - 3
Plan mounting location and routing
Choose a stable mounting point on the furnace or adjacent ductwork with clear access for maintenance. Plan water line and drain routes that avoid sharp bends and minimize exposure to heat or moisture.
Tip: Label routes and note where hardware will go to streamline assembly. - 4
Mount the humidifier housing
Secure the humidifier to the mounting surface using the provided brackets and screws. Ensure the unit sits level and that the inlet and outlet align with the ductwork.
Tip: Double-check that screws don’t penetrate electrical components or gas lines. - 5
Connect water supply line
Attach the flexible water line to the shut-off valve and humidifier inlet using compression fittings. Use Teflon tape on threaded connections and test for leaks after tightening.
Tip: Leak prevention starts with clean, dry fittings and proper torque. - 6
Install drain line and trap
Route the drain line to a suitable drain, ensuring a downward slope and an accessible trap. Secure the line to prevent movement that could cause leaks.
Tip: Avoid kinks in the drain line which can block condensate flow. - 7
Wire controls to furnace
Connect the humidifier’s low-voltage leads to the furnace control board or humidistat per the manufacturer diagram. Keep wires organized and away from heat sources.
Tip: Keep extra wire length coiled neatly to allow for future servicing. - 8
Test and adjust
Restore power and water, then run the system to verify moisture flow and control responsiveness. Check for leaks, listen for unusual noises, and adjust humidistat settings as needed.
Tip: Run a full cycle to confirm even humidity distribution and no condensation on ducts.
FAQ
Do I need a professional to install an HVAC humidifier?
A DIY installation is possible for homeowners with basic plumbing and electrical skills and a clear wiring diagram. If you’re unsure about your ability to safely run water lines, wire to the furnace control, or comply with local codes, hiring a licensed HVAC technician is the safer option.
You can install it yourself if you’re comfortable with plumbing and wiring, but otherwise hire a professional for safety.
Can I reuse existing pipes and water lines?
Yes, if the existing lines are compatible and in good condition. Inspect for corrosion, leaks, and mineral buildup before reusing, and replace any aging fittings as needed.
Reuse is possible when lines are in good shape and compatible with the humidifier.
Will installing an HVAC humidifier affect energy bills?
A properly installed humidifier generally uses a small amount of energy and should not dramatically raise bills. The major impact comes from how efficiently your system runs and whether humidity is kept at comfortable, stable levels.
Energy use is typically modest and linked to overall system performance and humidity settings.
How often should I replace humidifier filters or panels?
Follow the manufacturer’s recommendations for replacement intervals and inspect components during routine maintenance. Regular cleaning helps prevent mineral buildup and ensures consistent performance.
Change the filter as advised by the maker and keep it clean.
What maintenance tasks should I perform after installation?
Schedule periodic cleaning, sanitizing, and inspection of water lines and traps. Check for leaks, inspect duct connections, and verify that humidity levels remain steady and within comfortable ranges.
Regular cleaning and checks keep the system running smoothly.
The Essentials
- Assess compatibility and plan mounting before purchase.
- Choose the humidifier type that matches your HVAC and ductwork.
- Secure water supply, drainage, and electrical connections with care.
- Test the system thoroughly and monitor for leaks after installation.
- Establish a maintenance routine to extend equipment life.
