Installing a whole-house humidifier adds moisture to every room, improving comfort and protecting woodwork and indoor air quality. This guide covers sizing, compatibility with your HVAC, safe water and electrical connections, and a clear installation sequence you can follow or discuss with a professional. According to HumidifierBasics, proper mounting and sizing are critical.
Understanding the value of a whole-house humidifier installed
Winter dryness is a common problem in homes with forced-air heating. When humidity dips below 30-40%, inhabitants experience dry skin, irritated eyes, and static shocks, while wooden furniture, trim, and flooring can crack or warp. A whole-house humidifier periodically adds moisture directly into the furnace airflow, distributing humidity evenly through ducts. This approach maintains a steadier indoor climate and reduces the need for portable humidifiers in every room. HumidifierBasics highlights that sizing, placement, and regular maintenance are the keys to long-term performance and energy efficiency, not simply installing a device and hoping for the best. A correctly installed system also supports healthier indoor air quality and can lessen irritants that aggravate coughs and congestion during dry months.
Sizing, compatibility, and system types
Choosing the right humidifier means matching your home’s airflow, duct layout, and furnace type. There are several main categories: bypass, powered (fan-assisted), and steam (or evaporative) models. Bypass units use the furnace’s blower to move air through a water panel; powered units have their own fan for faster operation; steam humidifiers generate warm mist directly within the unit. Sizing should align with your home’s square footage, HVAC airflow (CFM), and the current humidity levels you’re aiming to maintain. The HumidifierBasics analysis emphasizes that improper sizing can lead to under-humidification in some zones and over-humidification in others, so ask if you’re unsure about the correct model for your system.
Humidifier types can also influence maintenance: evaporative pads require periodic replacement and cleaning, while steam units may have more complex electrical connections. When evaluating options, consider energy use, noise levels, and compatibility with your furnace’s control board.
Installation prerequisites and safety considerations
Before you begin, confirm local codes and warranty implications. Many homes require a dedicated water line shut-off and an appropriate drainage path; electrical connections may need to be integrated with the furnace control circuit or a dedicated power source. Always shut off power to the furnace and the humidifier at the main breaker before starting work, and avoid working in damp environments. If you’re uncertain about electrical or plumbing tasks, or if your furnace is in a tight closet, consult a licensed technician. Safety first protects you and your home’s systems, and it reduces the risk of leaks or damage that could void warranties.
Choosing a mounting location and mounting considerations
Mount the humidifier on or near the furnace plenum where warm air passes through the unit. Ensure there is enough clearance for servicing and airflow and that the unit is level. Use the mounting flange and screws supplied with the kit, and seal any gaps with appropriate gaskets or thread sealant as recommended by the manufacturer. Avoid mounting in a location where heat or condensation could cause corrosion or where vibration would stress duct connections. Proper mounting minimizes noise, vibration, and the likelihood of leaks.
Water supply and drainage considerations
A dedicated cold-water line usually feeds the humidifier through a shut-off valve. The installation should incorporate a drain line that leads to a suitable building drainage point, with an appropriate trap to prevent sewer gas intrusion. Use the correct size fittings and ensure all connections are secure and leak-free. If the water quality is hard (high mineral content), consider a water filtration option or a mineral reduction system as recommended by the manufacturer, since mineral buildup can shorten the unit’s life and reduce efficiency. Distilled or softened water can help, but verify compatibility with your model.
Maintaining humidity levels and water quality
After installation, set your desired indoor humidity in the range of 30-50% for most homes, adjusting based on occupant comfort and seasonal conditions. Regularly inspect the humidifier for mineral buildup, mold growth, or leaks, and clean or replace components as directed by the manufacturer. Change filters or pads on a recommended schedule, typically annually for many evaporative units. Keep a hygrometer in a central location to monitor performance and prevent over-humidification, which can lead to condensation and mold.
Final testing and long-term maintenance
With power and water connected, perform a controlled test to confirm proper operation: feed water, start the furnace, and observe distribution in a few rooms. Check for leaks, verify that the airflow through the humidifier is continuous, and measure humidity after a few hours of operation. Create a simple maintenance routine: monthly visual checks, quarterly cleaning, and annual professional service, especially for steam systems or complex wiring. Regular maintenance helps sustain performance and protects your investment over time.
Tools & Materials
- Humidifier installation kit compatible with your furnace plenum(Includes mounting hardware and humidifier body appropriate for your system)
- Water shut-off valve(Install on the cold-water supply line to the humidifier)
- Flexible water supply line(Typically 1/4 inch or 3/8 inch depending on kit; include fittings)
- Drain line and trap(Proper trap height to prevent backflow; connect to building drainage)
- Sealant and Teflon tape(Seal threaded connections to prevent leaks)
- Electrical tools and wiring (if required by model)(Include appropriate connectors and fuse or transformer as specified)
- Screwdriver set, pliers, and cutter(Common household tools for mounting and line work)
- Hygrometer or humidity meter(Optional for monitoring humidity levels in key rooms)
Steps
Estimated time: 2-6 hours

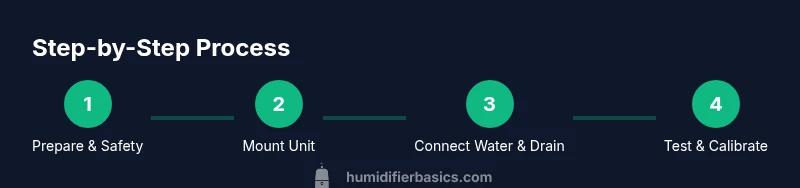

- 1
Power down and prep safely
Shut off the furnace and the humidifier power at the main breaker. If you have a battery backup for the thermostat, disable it to prevent unintended operation. Lay towels and a shallow tray to catch any incidental drips, and ensure you have a clear workspace.
Tip: Have a helper hold tools or hold a flashlight while you work; good lighting prevents mistakes. - 2
Verify compatibility and gather parts
Confirm your furnace plenum accepts the humidifier model you selected and confirm the required water line size and electrical needs. Gather all components from the kit and lay them out in the order you’ll install them.
Tip: Double-check wiring diagrams in the manual before making any electrical connections. - 3

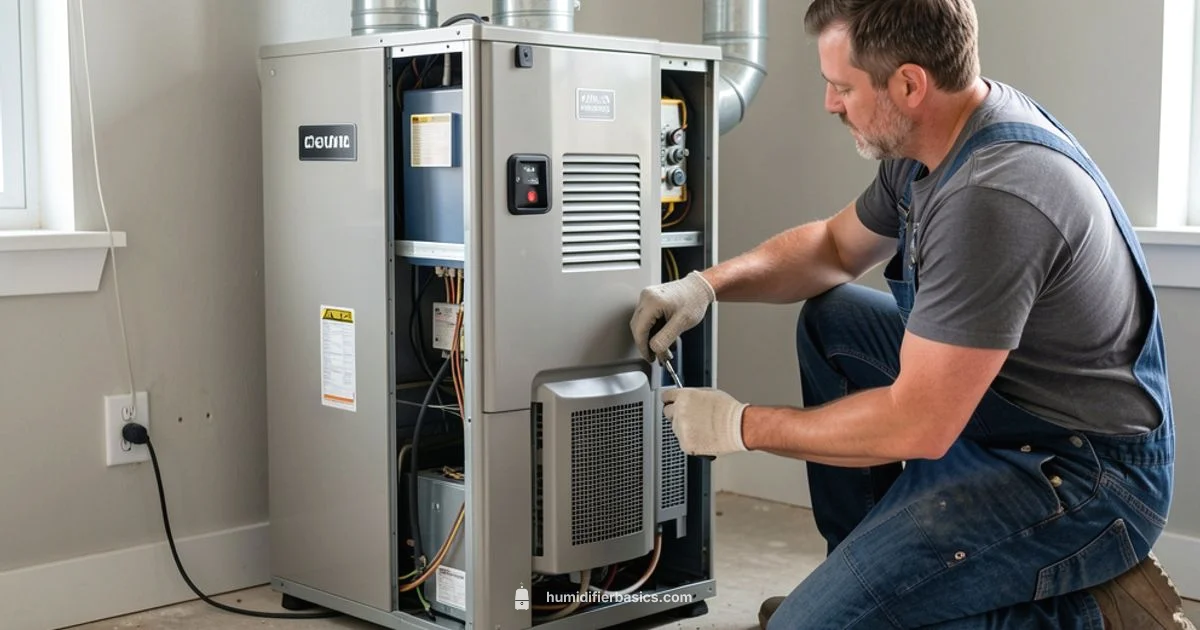

Mount the humidifier to the furnace plenum
Position the humidifier so airflow passes through the water panel or unit as designed. Mark drill points, secure the mounting flange with screws, and seal any joints per the manufacturer’s instructions.
Tip: Ensure the unit sits level to prevent leaks and ensure easy access for maintenance. - 4
Connect the water supply
Install the shut-off valve on the cold-water line and connect the humidifier’s water inlet using the supplied fittings. Tighten connections with a wrench, but avoid over-tightening which could crack plastic components.
Tip: Flush the line before final attachment to remove debris that could clog the unit. - 5
Wire power and controls (if applicable)
Connect the humidifier’s electrical lead to the furnace control circuit or a dedicated power source as specified. Ensure power is off while wiring and verify voltage compatibility. Label any new wiring for future service.
Tip: If you are unsure about electrical wiring, hire a licensed electrician for safety. - 6
Install drain and check for leaks
Route the drain line to a proper drain and install the trap as required. Check every connection for leaks using a slow water flow test before turning the system on for the first time.
Tip: Keep the drain line elevated to prevent backflow and ensure proper slope for drainage. - 7
Test, calibrate, and finalize
Restore power, start the furnace, and observe humidity distribution. Use a hygrometer to verify RH stays in the 30-50% range and adjust settings as needed. Schedule regular maintenance and keep documentation for future service.
Tip: Document the install date and humidity settings in your home maintenance log.
FAQ
What is the difference between bypass and powered whole-house humidifiers?
Bypass humidifiers rely on the furnace blower to move air through a water panel, while powered units have their own fan to push air. Steam or evaporative models generate humidity within the unit. Choose based on your desired airflow, noise tolerance, and maintenance capacity.
Bypass uses the furnace fan; powered units have their own fan for more control. Steam models generate humidity inside the unit.
Do I need a professional to install a whole-house humidifier?
Installation involves plumbing, electrical work, and HVAC integration. If you’re not comfortable with those tasks, hire a licensed technician to ensure safety, proper sealing, and warranty compliance.
If you're not comfortable with plumbing or wiring, it's wise to hire a professional.
How should I size the humidifier for my home?
Size should align with your home’s square footage, HVAC airflow, and current humidity. An undersized unit under-humidifies; an oversized unit can lead to condensation and mold. When in doubt, start with a model rated for your space and adjust as needed.
Size based on your home and airflow; avoid under- or over-sizing.
What humidity range should I maintain indoors?
Aim for about 30-50% relative humidity, adjusting for comfort and seasonal needs. Use a hygrometer to monitor levels and prevent mold or condensation on windows and walls.
Most homes stay comfortable around 30-50% RH.
How often should I service a whole-house humidifier?
Inspect monthly for leaks and mineral buildup; clean or replace pads or filters as recommended by the manufacturer; schedule a professional service annually for steam or integrated electrical units.
Check monthly, clean as needed, and service yearly for steam models.
Will a humidifier affect my energy bills?
A properly sized unit adds only modest energy use, mainly to run the blower or steam generator. Modern models are designed to be energy-efficient, but check the unit’s efficiency rating and your furnace’s energy profile.
It adds some energy use, but usually not a major cost if sized correctly.
Watch Video
The Essentials
- Choose the right humidifier size based on home airflow and duties.
- Mount and connect with attention to water and electrical safety.
- Maintain humidity in 30-50% to protect occupants and woodwork.
- Perform regular maintenance to sustain efficiency and longevity.
