How to Install a Whole-Home Humidifier: A Step-by-Step Guide

Name: How To Install A Whole Home Humidifier From Start To Finish
Uploaded: 2026-03-08
Duration: 18 min 8 s
Description: A comprehensive, step-by-step guide to installing a whole-home humidifier, including planning, mounting, water supply, wiring, testing, and maintenance for safer, balanced indoor humidity.

A comprehensive, step-by-step guide to installing a whole-home humidifier, including planning, mounting, water supply, wiring, testing, and maintenance for safer, balanced indoor humidity.

HumidifierBasics Team

March 8, 2026·5 min read

Air Quality Water Quality Furnace Humidifier Humidifier

Whole-Home Humidifier Install - HumidifierBasics

Quick AnswerSteps

Installing a whole home humidifier can stabilize indoor humidity and improve comfort and air quality. This guide walks homeowners through selecting a system, preparing your furnace, and wiring and finishing the installation. Key requirements include a compatible furnace collar, proper drainage, and a dedicated power source. Follow safety guidelines and consult a professional if in doubt.

Why a Whole-Home Humidifier Matters

Humidity levels in homes swing with the seasons, and dry air in winter can cause discomfort and damage to wood, plaster, and electronics. Installing a whole-home humidifier helps stabilize humidity across all rooms because the system is integrated with your HVAC, delivering moisture through the ducts. According to HumidifierBasics, a well-chosen system can provide uniform humidity without overacting in one room. The HumidifierBasics team found that proper placement and a correctly sized unit are essential for reliable performance. Instead of filling room-by-room portable units, a whole-home solution treats the entire house, making maintenance easier and the humidity consistent. When you’re evaluating options, focus on system type (bypass, fan-powered, steam) and control strategy (manual humidistat or automatic humidity sensing). The result is healthier air, less static, and comfort that feels steadier across bedrooms, living spaces, and home offices.

Types and How to Choose

Whole-home humidifiers come in a few core configurations. Bypass humidifiers route HVAC condensate to the humidifier, using the furnace’s airflow to spread moisture. Fan-powered models have their own blower, which can deliver higher humidity levels in larger homes. Steam humidifiers generate moisture via a built-in boiler and can offer precise control, but they are typically more complex and expensive. When selecting, consider your home size, existing HVAC efficiency, water hardness, and desired level of humidity control. A humidifier that integrates with a smart thermostat or a dedicated humidistat can help maintain steady moisture levels automatically. The best choice balances reliability, maintenance needs, and overall impact on indoor air quality.

Planning, Codes, and Safety

Before you install, check local codes and your furnace’s warranty requirements. Some jurisdictions require professional installation for systems connected to gas lines or electrical wiring. Always shut off power to the furnace before any work, and verify that your water supply is accessible and clean. Plan for proper drainage, ideally with a gravity-fed line that slopes toward a drain. Keeping clear access to the furnace compartment is essential for future maintenance and inspection. If your home has high mineral content in water, consider a filter or mineral cartridge recommended by the humidifier manufacturer to prevent mineral buildup.

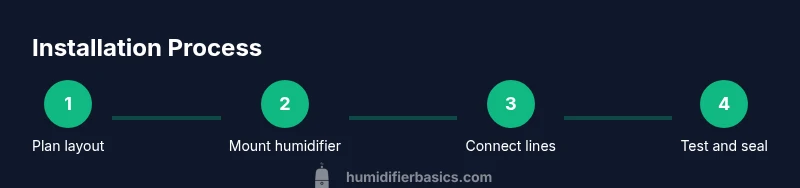

Step-by-Step Installation Overview

This section outlines the high-level sequence you’ll follow. For electrical and gas-related steps, consult a licensed professional. You’ll mount the humidifier on the furnace plenum or return, connect water and drain lines, wire the humidistat or control, seal joints, and test the system for leaks and proper humidity control. Use manufacturer-provided templates to ensure a secure fit and avoid voiding warranties. A careful installation reduces the chance of leaks, mineral buildup, and electrical faults, ensuring long-term reliability. The goal is a quiet, consistent humidity delivery across the home with minimal ongoing maintenance.

Maintenance, Troubleshooting, and Longevity

Ongoing maintenance keeps a whole-home humidifier performing as intended. Regularly flush the system to prevent mineral buildup, replace any water filters according to the manufacturer’s schedule, and inspect connections for leaks. Keep water hardness considerations in mind; in hard-water areas, minerals can accumulate in the valve and tube. If you notice reduced humidity, check for blockages in the supply line or a clogged humidistat. Seasonal checks—before winter and spring—help catch issues early and extend the life of the unit. HumidifierCare includes simple steps homeowners can follow to minimize dry air and maximize comfort year-round.

Quick Start Checklist After Install

Verify all connections are secure and dry.
Confirm humidity targets are set between 30–50% for most homes.
Ensure drainage line is sloped and unobstructed.
Test the system with the humidistat adjusted to a mid-range setting.
Schedule a maintenance routine for mineral buildup and filter checks.

Tools & Materials

Humidifier kit compatible with your furnace(Ensure collar matches duct size and furnace model)
Duct collar or mounting plate(For securing humidifier to plenum)
Water supply valve or saddle valve(Cold-water line from supply; include shutoff valve)
Flexible water line(6-8 ft depending on installation location)
Shut-off valve(Close before installation to isolate water supply)
Drill and installation hardware(Screws, washers, gasket; use appropriate bits for metal/plenum)
Screwdriver set(Phillips and flat-head for mounting and wiring terminals)
Wire strippers(Useful for low-voltage wiring to humidistat)
Voltage tester(Check 24V control circuit safely before wiring)
Teflon tape(Seal threaded connections to prevent leaks)
Pipe joint sealant/mastic(Optional for securing joints and drainage)

Steps

Estimated time: 2-4 hours

1
Assess compatibility and plan the install
Confirm your furnace supports a whole-home humidifier and verify available plenum space and duct collar size. Review the humidifier model’s installation guide and map out where supply and drain lines will run. Gather all required tools and materials before starting to prevent mid-work trips.
Tip: Double-check model compatibility and measurements before drilling or cutting.
2
Shut off power, water, and gas as applicable
Power down the furnace circuit at the breaker. If your system uses gas, shut off the gas supply as a precaution. Close the cold-water supply valve to prevent leaks during mounting and connection.
Tip: Use a lockout/tagout if multiple people access the panel.
3
Prepare mounting location on the plenum
Clear the furnace plenum area and mark the mounting location according to the humidifier’s template. Dry-fit the humidifier to ensure a proper seal and alignment before drilling.
Tip: Dry-fit first to avoid rework and ensure a tight seal.
4
Mount the humidifier and seal the mounting
Attach the humidifier to the plenum using the provided mounting hardware and gasket. Apply sealant or gasket material as recommended to prevent air leaks.
Tip: Ensure the seal is continuous around the mounting surface.
5
Run and connect the water supply line
Attach the cold-water supply line with an upstream shut-off valve. Use a proper connector and avoid kinking the line. Leave the line long enough for future maintenance but not so loose it sags.
Tip: Install a dedicated shut-off to isolate and service easily.
6
Install the drain line and ensure proper slope
Route the drain line to an appropriate drain and ensure a continuous slope for gravity drainage. Avoid low spots that can cause backflow or standing water.
Tip: Check local codes for drain line requirements and venting.
7
Wire the humidistat/control to the 24V circuit
Follow the humidifier’s wiring diagram to connect to the furnace control circuit or thermostat. Use proper low-voltage wire and secure with approved connectors. If unsure, consult a licensed electrician or HVAC technician.
Tip: Label wires and preserve a clean, organized wiring path.
8
Seal joints, test for leaks, and power up
Tighten all fittings, run water through the system to test for leaks, and verify drainage. Restore power and test humidity control to ensure even distribution across zones.
Tip: Watch for any buzzes or unusual noises during initial operation.
9
Set humidity targets and verify performance
Adjust the humidistat to a mid-range setting and observe humidity levels across rooms. Make minor adjustments to balance comfort and energy use.
Tip: Aim for 30–50% relative humidity in most homes.
10
Create a maintenance plan
Schedule seasonal checks of connections, water quality, and filter or mineral cartridge replacements. Record dates and parameters for easy reference.
Tip: Regular upkeep prevents mineral buildup and performance loss.

Pro Tip: Label water and drain lines for easy future maintenance.

Warning: Never work on live electrical components; shut off power before wiring.

Note: In hard-water areas, consider mineral filters to minimize buildup.

Pro Tip: Use a dedicated humidistat to maintain stable humidity levels.

Note: Keep the furnace area clear to allow easy access for maintenance.

FAQ

Do I need a professional to install a whole-home humidifier?

For safety, especially with electrical wiring and gas connections, many homeowners hire a licensed HVAC technician. Basic installations can be manageable for those with DIY experience, but professional verification helps protect warranties and ensure compliance with codes.

Can I install a whole-home humidifier myself?

DIY installation is possible for some bypass units, but electrical wiring and water connections can be risky. If you’re comfortable following a detailed guide and you have the right tools, proceed cautiously; otherwise, hire a pro.

What maintenance does a whole-home humidifier require?

Regular cleaning, mineral filter checks (if applicable), water-quality considerations, and periodic flushing are typical. Follow the manufacturer’s schedule and inspect connections for leaks.

Is a humidifier safe for pets?

Humidifiers are generally safe if properly maintained and not accessible to pets to tamper with water. Always ensure clean water and secure connections to prevent accidents.

How should I set humidity after install?

Aim for 30-50% relative humidity for most homes. Adjust based on comfort, season, and climate conditions, and monitor using a reliable humidistat.

Where should I place the humidifier on the furnace?

Most systems mount on the furnace plenum or return air duct, following the manufacturer’s template. Avoid direct heat contact and maintain accessible service space.
