Where Does a Humidifier Go on the Furnace? Practical Placement Guide
Learn exactly where to install a furnace humidifier for even moisture distribution, safe operation, and easy maintenance. This guide covers mounting options, water supply, controls, safety, and troubleshooting for homeowners and renters.
Where does humidifier go on furnace? Install a furnace humidifier on or adjacent to the furnace, typically on the air return or supply duct using a bypass or powered design. It connects to a water line and is controlled by a humidistat to maintain comfortable indoor humidity. Proper placement promotes even moisture distribution and minimizes condensation.
Introduction: Why placement matters for furnace humidifiers
Understanding where a humidifier goes on the furnace is more than a DIY curiosity; it determines how evenly moisture is distributed, how much maintenance you’ll need, and how the system interacts with your home’s HVAC cycles. The right location minimizes condensation on walls and windows, reduces dry-air discomfort, and helps all rooms reach a consistent humidity level. According to HumidifierBasics, starting with a clear plan for placement makes the rest of installation safer and easier. In most homes, the goal is to connect the humidifier to either the return duct or the supply duct in a way that leverages existing airflow without creating hot spots or leaks. This article will guide you through practical placement strategies and common mounting options so you can answer the core question: where does humidifier go on furnace, and how should you install it for reliable performance?
Humidifier types and mounting choices influence placement decisions. A bypass furnace humidifier generally sits on the return duct or plenum, using furnace air to draw moisture from its reservoir. A powered or fan-driven unit can mount closer to the supply side and may include its own blower for stronger humidity delivery. The optimal position balances airflow, gravity-fed water lines, and access for maintenance. If you’re unsure about your specific setup, start with the return-side approach, then evaluate performance across living spaces. In all cases, the humidifier should be accessible for service and clearly labeled with shut-off valves. This is especially important when you need to winterize or perform routine cleaning. HumidifierBasics analysis shows that mounting on the return duct often yields more consistent distribution across rooms, while supply-side mounting can work well in larger homes with longer duct runs.
Modern placement principles emphasize airflow and humidity without creating condensation or mold risk. The furnace’s air handler provides the driving force for moisture as warm, humid air travels through ducts. The humidifier should be positioned where it can supply moisture evenly to the circulating air, not where it will simply drip into a single register. Ensure the water line and drain are routed away from electrical components and heat sources. Also consider accessibility for annual cleaning and filter changes, because neglecting maintenance reduces effectiveness and can shorten the life of the unit.
This section outlines practical mounting options and why they work. If you’re dealing with a standard two-story home, a bypass humidifier mounted on the return duct near the furnace is a common starting point. In larger homes, you may opt for a mounted unit on the supply side with a dedicated control. In every case, verify that the chosen location won’t interfere with combustion air, will not collect condensate on the duct surface, and can be drained away safely. The goal is reliable humidity without inviting extra wear on the HVAC system. Remember to plan for a future filter and water-quality considerations—these details matter for long-term performance and indoor air quality. HumidifierBasics emphasizes choosing a mounting point that is both practical and maintainable, reducing the likelihood of leaks and dry spots across rooms.
Tools & Materials
- Furnace humidifier kit (bypass or powered)(Choose model compatible with your furnace and duct size)
- Water supply line (1/4(Typically copper or braided stainless steel; ensure supply valve is accessible)
- Shut-off valve(Install on the cold-water line near the humidifier for easy isolation)
- Drain line or condensate line(Route to a safe drain or pan with proper slope and venting)
- Tubing and fittings(Connects humidifier to water source and drain; use appropriate adapters)
- Mounting hardware (brackets, screws)(Secure to duct or furnace cabinet without causing vibration)
- Humidistat or control module(Fan/thermostat integration depends on model; ensure compatibility)
- Tools (drill, screwdriver set, adjustable wrench)(For mounting and connections)
- Sealant or tape (plumber’s tape, silicone)**(Seal water connections and prevent leaks)

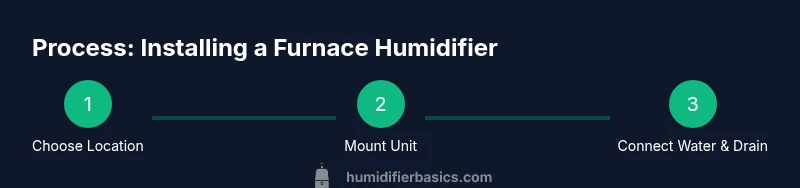

Steps
Estimated time: 2-5 hours
- 1
Power down and prepare the area
Turn off the furnace and its circuit breaker. Open the service panel carefully and clear the work area. This initial safety step prevents shocks and accidental activations during installation.
Tip: Double-check the breaker is off and test a nearby outlet before touching any wiring. - 2
Choose a mounting location
Evaluate return vs. supply options. For even distribution, mount on or near the return duct. Avoid locations that could trap condensation or interfere with blower operation.
Tip: Prefer an accessible spot that allows easy cleaning and inspection. - 3
Attach the mounting bracket or unit
Secure the humidifier to the chosen duct or furnace surface with the provided brackets. Ensure the unit is level and firmly attached to prevent vibration.
Tip: Use a level to confirm straight mounting and avoid wobble. - 4
Run water supply
Connect the shut-off valve to the cold-water line and to the humidifier’s inlet. Confirm the supply line is leak-free before proceeding.
Tip: Turn the water on slowly and look for drips around every connection. - 5
Connect the drainage
Route the condensate line to a safe drain or condensate pan. Ensure the slope directs water away from electrical components.
Tip: Keep the drain clear of obstructions and check for blockages during maintenance. - 6
Wire and controls
Connect the humidistat or control module to the humidifier and integrate with the furnace controls as required by your model. Follow the manufacturer’s wiring diagram precisely.
Tip: If you’re unsure about wiring, consult the manual or a licensed electrician. - 7
Test and calibrate
Power the system and run a test cycle. Check for leaks, verify humidity rise, and adjust the humidistat for a comfortable range.
Tip: Start with a modest humidity setting to prevent oversaturation. - 8
Document and label
Label water and electrical connections. Leave a quick-reference guide for future maintenance.
Tip: Record model numbers and dates for future service.
FAQ
Do I need a professional to install a furnace humidifier?
Most homeowners can install simple bypass humidifiers, but electrical wiring and drainage work may require a licensed professional. Check local codes and the manufacturer’s guidelines before proceeding.
You can usually handle simple installations, but for wiring and drainage, consider a licensed pro.
Can I install on any furnace?
Most standard furnaces support a furnace humidifier, but compatibility depends on duct size and available power. Verify the model with your furnace’s specifications and your HVAC contractor if in doubt.
Check the humidifier’s compatibility with your furnace and duct, and consult a pro if you’re unsure.
What humidity range should I aim for after installation?
Aim for a comfortable indoor range—typically moderate humidity that avoids excessive moisture on surfaces. Use a humidistat to maintain a stable level and monitor for fogging or condensation.
Try to keep humidity in a comfortable range; use the humidistat to stay within target levels.
Is it safe for pets and children?
Yes, when properly installed with water and electrical safety considerations. Keep lines secure and out of reach to prevent tampering or leaks.
Yes, but ensure safety and keep lines away from pets and kids.
How often should I service the humidifier?
Inspect and clean the humidifier seasonally or per the manufacturer’s schedule to prevent mineral buildup and ensure efficient operation.
Clean it according to the manual and check for leaks at the start of each season.
Watch Video
The Essentials
- Mount on the return or near the furnace to promote even humidity.
- Choose a bypass or powered unit based on your duct layout and house size.
- Prioritize accessibility for maintenance and safety checks.
- Regular cleaning and monitoring prevent leaks and ensure effective humidity control.
