Aprilaire Humidifier Installation: A Step-by-Step Guide
Learn how to install an Aprilaire humidifier with this comprehensive, step-by-step guide. Get compatibility tips, wiring and water-line setup, and maintenance advice to ensure balanced humidity and better indoor air quality.
This guide helps homeowners install an Aprilaire humidifier, covering model compatibility, mounting, water and drain lines, 24V wiring, humidistat integration, testing, and maintenance. By following the steps, you’ll improve indoor air quality with a reliable, whole-house humidification solution. According to HumidifierBasics, Aprilaire units are known for solid integration with most furnaces and minimal ongoing upkeep.
Why Aprilaire humidifiers are a trusted choice for whole-house comfort
According to HumidifierBasics, Aprilaire humidifiers are designed for reliable performance and easy integration with a wide range of furnace brands. They distribute moisture evenly through your ductwork, helping to balance indoor humidity levels without bulky room units. This reliability, combined with straightforward maintenance, makes Aprilaire a popular option for both new installations and upgrading older systems. When choosing a model, homeowners should consider furnace type, ductwork access, and whether they want a bypass or powered configuration. In every case, proper installation is critical to achieving consistent humidity and avoiding issues like mineral buildup or mold.
Model family overview: bypass vs. power/humidifier configurations
Aprilaire offers several designs, but two families cover most homes: bypass humidifiers and powered (furnace-driven) humidifiers. Bypass models rely on furnace air to move moisture through the ductwork, using an external humidistat to control operation. Power models include their own fan and connect directly to the furnace’s 24V circuit. For uneven airflow or limited duct access, a powered model can provide more consistent humidity. When selecting a model, match capacity to your home’s square footage and existing HVAC layout. Always confirm compatibility with your furnace before purchasing.
Planning your installation: layout, clearances, and accessibility
Before you mount anything, map out the route for the water line, drain line (if required by model), and the 24V control wiring. Ensure the humidifier will be conveniently located for filter access, drainage, and future maintenance. Check clearances around the furnace cabinet and confirm there is enough room to remove the humidifier lid for mineral-removal or filter maintenance. If your home has a metal duct, plan for proper grounding connections as required by local electrical codes. A well-planned layout reduces the risk of leaks and makes future service faster.
Safety and prerequisites: power, water, and code checks
Shut off furnace power at the breaker and close the cold-water supply before starting any work. If you’re reconnecting the water line, ensure the valve is accessible and easy to operate. Many jurisdictions require a licensed plumber or HVAC technician for installations involving gas furnaces or complex wiring. While a DIY approach is possible for confident homeowners, verify that your installation aligns with local codes and the furnace manufacturer’s installation instructions. Always wear protective eyewear and keep a bucket or towels handy for potential drips.
Mounting options: where to place the humidifier on your system
Humidifiers typically mount on the furnace cabinet or directly onto the ductwork, depending on model and access. Mounting should allow for easy removal of the cover for mineral scale cleaning and filter checks. Secure the unit with the supplied hardware, ensuring it sits level and firmly without stressing duct connections. If you’re working near electrical components, keep magnet-stray fields and moisture away from live wiring. In some homes, a dedicated mounting pad can reduce vibration transfer and noise.
Water and drain routing: best practices for reliability
Connect the water line to a cold-water supply with a shut-off valve. A typical install uses 1/4-inch compression fittings; ensure all connections are tight enough to prevent leaks but not overtightened. Some models require a drain line or condensate line; route the line to an appropriate drain with a gentle slope to avoid standing water. Use protective clamps to prevent kinking and consider a draft-proof cover to prevent debris from entering the water line. Proper routing minimizes maintenance and leak risks.
Wiring and control integration: 24V control and humidistat
The humidifier’s control connects to a 24V circuit, usually through the thermostat or a dedicated humidistat. If you’re using a humidistat, mount it in a convenient location on a wall or in a central hallway, within reach but away from direct heat sources. Run low-voltage wires carefully, using strain relief where the wires pass through furnace panels. If you’re integrating with the existing thermostat, confirm that the thermostat has humidity control capability and is compatible with your humidifier model. Label wires for future service and test continuity with a multimeter before powering up.
System testing and calibration: first startup and checks
With the water line open, power restored, and the furnace warmed, test the humidifier at a low setting to observe water flow, air movement, and humidity rise. Check all connections for leaks and watch the drain line for proper flow. After initial operation, adjust the humidistat to avoid over-humidification or condensation on walls and windows. If you notice mineral buildup, consider a demineralization filter, and plan a routine cleaning schedule to keep mineral deposits at bay.
Maintenance planning: long-term care and preventative checks
A yearly maintenance routine keeps Aprilaire humidifiers performing optimally. Clean mineral deposits from the heating chamber and water panel according to the model’s instructions. Replace any filters or screens on schedule and sanitize the unit to prevent bacterial growth. Document maintenance dates and inspect the water supply valve and drain line for signs of wear. Establish a reminder schedule to ensure consistent humidity levels and indoor air quality.
Next steps: verifying performance and optimizing comfort
Once installed, monitor indoor humidity with a reliable gauge and adjust the humidistat based on season and house conditions. For optimal comfort, aim for indoor humidity in the 30-50% range, depending on external climate. If you notice fogging windows or condensation, re-check duct routing, seal leaks, and recalibrate the humidistat. Regular maintenance not only extends the life of the humidifier but also protects your home from excess moisture and potential mold growth.
Tools & Materials
- Aprilaire humidifier unit (model chosen)(Select a model compatible with your furnace and ductwork)
- Humidifier installation kit (mounting hardware)(Brackets, screws, gaskets; ensure fit to your furnace housing)
- Water supply valve with 1/4 in compression fitting(Cold-water line connection; install shut-off valve reachable for service)
- Water supply line (1/4 inch compression) and fittings(Flexible copper or PEX; ensure proper length and gentle bends)
- Drain line tubing(Only required for models with drain/evacuation line)
- Low-voltage thermostat wiring (18-22 AWG)(For 24V control; keep wires away from high-heat zones)
- 24V transformer (if your system lacks 24V control)(Only if your furnace/thermostat cannot supply 24V)
- Screwdriver set (Phillips and flat-head)(Sizes vary; common 0.5 inch and 1/4 inch bits)
- Wire strippers(For clean, secure low-voltage connections)
- Tubing cutter(For clean cuts in copper or plastic lines)
- Teflon tape(Seal threaded water connections)
- Leak-safe towels or bucket(For catching drips during install and test)

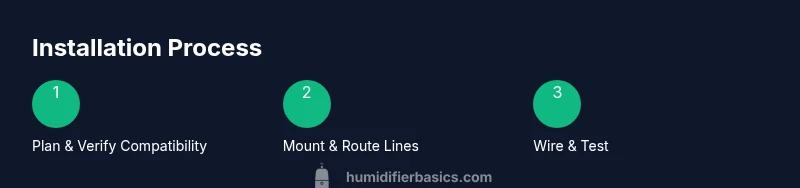

Steps
Estimated time: 2-4 hours
- 1
Verify compatibility and model
Confirm your furnace type and duct layout. Decide between a bypass or power humidifier based on airflow and space. Check capacity needs for your home size and plan for service access.
Tip: Consult the model’s installation manual and HumidifierBasics compatibility guidelines. - 2
Shut off power and water supply
Turn off the furnace at the breaker and close the cold-water valve. This prevents accidental starts and water leaks during mounting and connections.
Tip: Double-check there is no residual voltage by testing a control wire with a multimeter. - 3
Mount the humidifier on the furnace
Attach the humidifier to the furnace cabinet or duct as per the manufacturer’s bracket and screws. Ensure level mounting and unobstructed access for future maintenance.
Tip: Use the supplied gasket and sealant as recommended to minimize air leaks. - 4
Route the water supply line
Connect the 1/4 inch water line to the cold-water valve. Route the line to the humidifier with gentle bends and secure with clamps. Install the shut-off valve in an accessible location.
Tip: Avoid sharp bends; use copper or PEX fittings appropriate for your home. - 5
Install the drain line (if required)
If your model uses a drain line, route it to a suitable condensate drain with a proper slope. Secure the line to prevent movement or kinking.
Tip: Keep the drain line above any potential freezing points to avoid blockages. - 6
Connect low-voltage control wiring
Run 24V wires from the furnace/thermostat to the humidifier control terminals. Use proper strain relief and avoid crossing high-voltage circuits.
Tip: Label wires for future service and test continuity before powering up. - 7
Install humidistat or integrate with thermostat
Mount a dedicated humidistat or connect to an existing thermostat with humidity control. Ensure the control method aligns with your model’s requirements.
Tip: Place the humidistat away from heat sources and drafts for accurate readings. - 8
Power up and perform a leak test
Restore power, open the water valve slowly, and observe for leaks. Run through a short cycle to confirm water flow and airflow.
Tip: Keep towels handy and monitor humidity readings for accurate calibration. - 9
Calibrate and validate humidity settings
Set your humidistat for the desired indoor RH (typically 30-50%). Check for windows or walls showing condensation and adjust as needed.
Tip: Avoid over-humidifying to prevent mold risk and condensation on cold surfaces.
FAQ
Do I need a professional to install an Aprilaire humidifier?
Installation can be DIY for homeowners with basic plumbing and electrical skills, but some setups involve gas furnaces or complex wiring that may require a professional. Always consult manufacturer instructions and local codes.
DIY is possible if you’re comfortable with plumbing and low-voltage wiring; for gas furnaces or uncertain setups, hire a pro.
What is the difference between bypass and powered Aprilaire models?
Bypass models use the furnace’s airflow to distribute moisture, while powered models have their own fan and connect directly to 24V control for more consistent humidity.
Bypass relies on your furnace air, while powered units have their own fan and 24V control.
How long does installation typically take?
Most installations take about 2-4 hours, depending on accessibility to ducts, water lines, and electrical wiring.
Most installs take a couple of hours, give or take.
Will installing an Aprilaire humidifier affect my furnace warranty?
If installed per manufacturer instructions and local codes, it should not void the warranty. Always check your specific furnace and humidifier terms.
Generally not, as long as you follow the manufacturer’s instructions and codes.
Do I need to drain the system before starting?
Yes. Shut off water and power, relieve residual pressure, and proceed with connections to prevent leaks and spills.
Turn everything off and drain before you begin.
How should I maintain and sanitize the humidifier?
Regularly clean mineral deposits, sanitize the unit per the manual, and replace filters or panels if applicable. Schedule annual checks.
Clean and sanitize yearly, and replace any filters as directed.
Watch Video
The Essentials
- Choose the right Aprilaire model based on furnace type and home size.
- Plan water, drain, and wiring routes before mounting.
- Test for leaks and calibrate humidity for comfort and efficiency.
- Follow safety practices and local codes throughout installation.
- Schedule regular maintenance to preserve performance.
